Technical Specifications

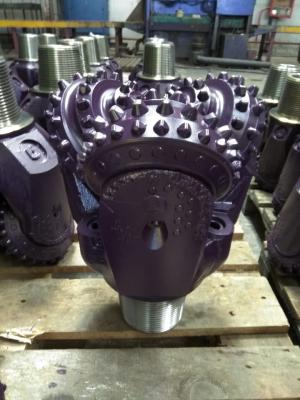

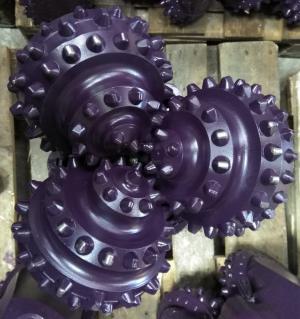

13 3/4 RS35

Diameter: 349.2mm (13 3/4")
IADC Code: 545X
Design number: UT56
State standard designation: СЗ-ЦГВУ


Specification

Gradient angle of axle journal 36°
Axle journal offset relative to drill bit axis 5.00 mm
Bearing type Roller bearing
Sealing Elastomer
Total number of inserts (inner/heel row) 175 (119/56)
Total number of insert rows (inner/heel row) 14 (11/3)
Number of changeable nozzles 4
Connecting thread З-152 (6 5/8 REG)
Drill bit net weight, kg 128.00
Drill bit gross weight, kg 132.40


Recommended Drilling Conditions

Rotation speed 300-40 rpm
Thrust load 15.00-24.00 t (33000 - 52800 lbs)
The lower level of rotation speed value corresponds the upper level of thrust load value and vice versa.


Purpose

The drill bit is designed for drilling medium hard abrasive formations


Design Features

Combined circulation (central and side) for what the screw from the central unit must be unscrewed.

The shirttail and leg entering edge are hardfaced with tungsten carbide

The leg is protected with tungsten carbide inserts

Tungsten carbide inserts on cone gages
